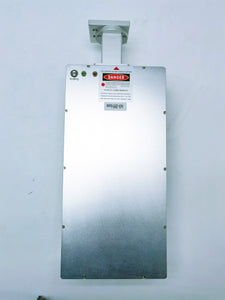

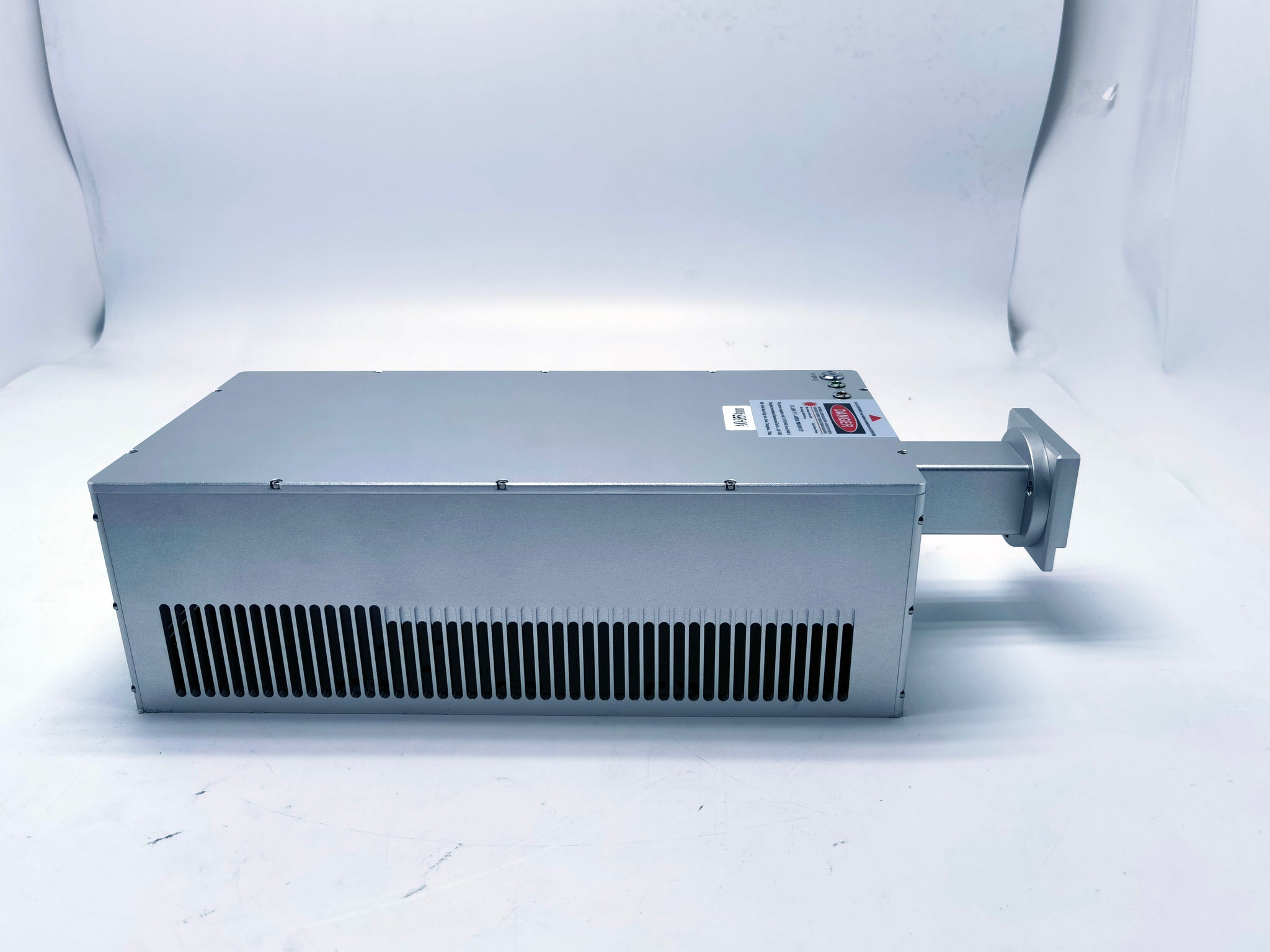

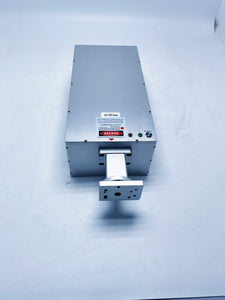

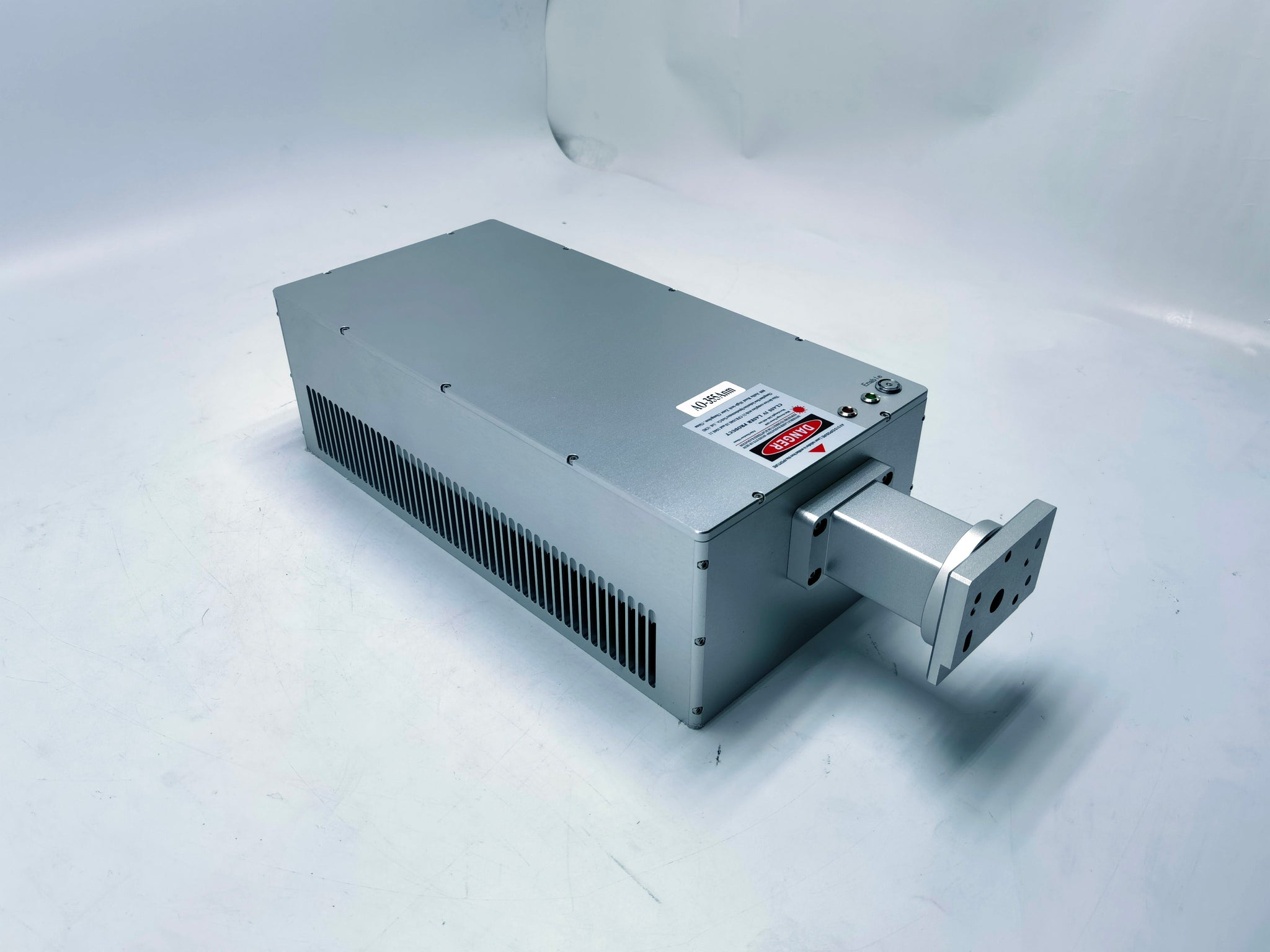

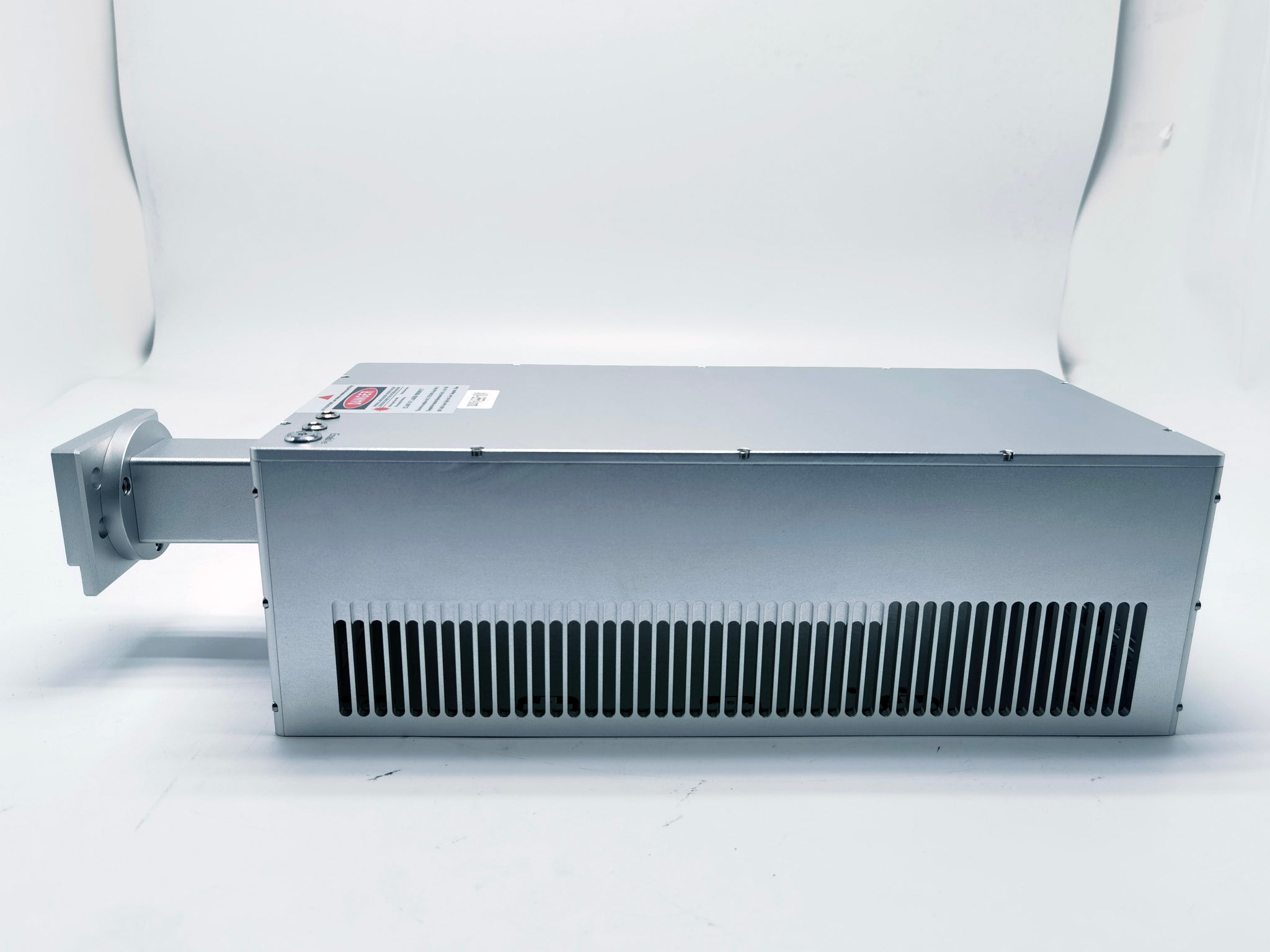

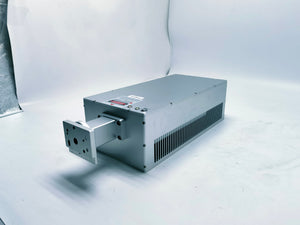

Endurance Lasers UV 355 nm ultraviolet laser source with different laser power output 1-12 watt
Tech specs:
- Model name: FL-355-WT
- Average power: 1W
- Pulse width: ~2ns
- Power stability: <1%@8 hours
- Rep. rate: ~20kHz
- Beam divergence: <1mrad(full angle)
- Life time: 20000 hours
FEATURES
- Non-contact marking without any
consumables;
- Air cooling without maintenance;
- Standard contrast > 300:1;
- Resolution > 2500 dpi;
- High marking speed> 10 pieces
slide/cassettes per minute.
All solid-state AOM Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
|
Wavelength (nm) |
355±1 |
||||
|
Operating mode |
Acousto-Optic Q-switched |
||||
|
Average power (W) |
3W@5kHz |
3W@30kHz |
5W@30kHz |
12W@50kHz |
|
|
Average power (W) = Single pulse energy (mJ) * Rep. rate (kHz) |
|||||
|
Single pulse energy (µJ) |
>1mJ@1KHz |
>100@30kHz |
>160@30kHz |
>200@50kHz |
|
|
Rep. rate (kHz) |
1-10 |
10~200 |
10~200 |
50~200 |
|
|
Pulse width (ns) |
~12 @1kHz |
~12 @30kHz |
~15@30kHz |
~11 @50kHz |
|
|
Transverse mode |
TEM00 |
||||
|
Beam Circularity (%) |
>90 |
||||
|
M2 factor |
<1.2 |
||||
|
Warm-up time (minutes) |
<10 |
||||
|
Beam divergence, full angle (mrad) |
<0.2(10×) |
<0.2(10×) |
<0.2(10×) |
<0.13(10×) |
|
|
Beam diameter at the aperture (1/e2, mm) |
8±1(10× beam expansion) |
||||
|
Pilot light (nm) |
650 （optional） |
||||
|
Beam height from base plate (mm) |
59.5 |
||||
|
Cooled method |
Water Cooled |
||||
|
Operating temperature (℃) |
10~35 |
||||
|

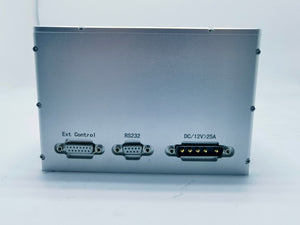

Supply Voltage |
DC 12V(≥25A) |
DC 12V(≥25A) |
DC 12V(≥25A) |
DC 24V(≥13A) |
|
|
Dimension (mm3) |
460.85*180*95 |
460.85*180*95 |
460.85*180*95 |
467*185*95 |
|
|
Weight (Kg) |
10 |
10 |
10 |
10.8 |
|
FL SERIES 355nm LASER SOURCE FOR LASER MARKING
FL-355nm series laser has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
|
Wavelength (nm) |
355±1 |
|
|
Operating mode |
Passively Q-switched |
|
|
Average power (mW) |
1~1000 |
|
|
Single pulse energy (µJ) |
1~40 |
|
|
Pulse duration (ns) |
~3 |
|
|
Peak power (kW) |
1~15 |
|
|
Rep. rate (kHz) |
~20kHz, Suitable for the applications of needing high peak power. |
|
|
Transverse mode |
TEM00 |
|
|
Beam divergence, full angle (mrad) |
~1.0 |
|
|
Beam diameter at the aperture (1/e2, mm) |
~6.0 |
|
|
Warm-up time (minutes) |
<15 |
|
|
Beam height from base plate (mm) |
21.5 |
|
|
Operating temperature (℃) |
10~35 |
|
|
Power supply (12VDC) |
PSU-FL-FDA ( switching power supply 12V/25A DC) |
PSU-FL-OEM ( switching power supply 12V/25A DC) |
LD PUMPED ALL-SOLID-STATE
AOM Q-SWITCHED LASER at 355NM
All solid state AOM Q-switched laser at 355 nm has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
|
Wavelength (nm) |
355±1 |
||
|
Operating mode |
Acousto-Optic Q-switched |
||
|
Average power (W) |
3W@5kHz |
3W@30kHz |
5W@30kHz |
|
Average power (W) = Single pulse energy (mJ) * Rep. rate (kHz) |
|||
|
Single pulse energy (µJ) |
>1000@1KHz |
>100@30kHz |
>160@30kHz |
|
Rep. rate (kHz) |
1-10 |
10-200 |
10-200 |
|
Pulse width (ns) |
~12 @1kHz |
~12 @30kHz |
~15 @30kHz |
|
Warm-up time (minutes) |
<10 |
||
|
Transverse mode |
TEM00 |
||
|
Beam Circularity (%) |
>90 |
||
|
Beam divergence, full angle (mrad) |
<0.2 (10× beam expansion) |
||
|
Beam diameter at the aperture (1/e2, mm) |
8±1 (10× beam expansion) |
||
|
Pilot light (nm) |
650 (optional） |
||
|
Beam quality (M2) |
<1.2 |
||
|
Beam height from base plate (mm) |
78.5 |
||
|
Cooling method |
Air Cooled |
||
|
Environment temperature (℃) |
10~35 |
||
|
Supply Voltage |
DC 12V(≥25A) |
||
|
Dimension(mm3) |
461*180*120 |
||
|
Weight(Kg) |
9.6 |
||
