Infinite laser power. 15 watt REAL LASER POWER. DUOS Laser Head for your 3D printer / CNC gantry / engraving frame.
15 watt (15000 mw) DUOS laser installed on CNC 3018 Sainsmart (Genmitsu)
15 watt (15000 mw) 445 nm blue diode "DUOS" laser head installed on a CNC frame
DUOS laser beam system. 15 watts (15 000 mW) of real optical laser power. Laser head for your 3D printer / CNC machine.
Easy mounting. Easy wiring. Pre-set focus!
Metal engraving test with 15 watt (15 000 mw) "Duos" laser installed on CNC 3018 machine.
Plywood & MDF cutting with an Endurance 15 watts (15 000 mw) "Duos" laser.
What do you get in the package:
- 1 x 15 watt "Duos" laser beam system. ver 1.1.
- 1 x A big single laser box with Mo2 PCB.
- 1 x DC/DC converters for the TEC cooling setup.
- 2 x PSU (12V 8A AC/DC).
- 2 x air nozzle ver 1.0.
- 1 x an advanced mounting bracket.
- Focusing plates
- Protective gloves
- Stickers
- Protective goggles
Engrave on stainless steel, acrylic, ceramics as a professional with an Endurance 15 watt (15000 mw) 445 nm blue diode "DUOS" laser head!
Painted / anodized aluminum laser engraving
Leather laser engraving
Glass laser engraving
Ceramics laser engraving
An effective laser beam spot is 0.12-0.125 mm (120-125 um)
Ultra-high precision for effective laser cutting and laser engraving.
First Laser diode laser beam spot 180x17 um (focal depth is 2 mm). 160-170 kW / cm^3
Second laser diode laser beam spot: 21x350 um (focal depth is 3.75 mm) 100-100 kW / cm^3
Comparing 15 watt (15000 mw) vs. 10 watt (10000 mw) diode laser - a live comparison test.
2 beams are always better for cutting than 1.
Power: 100%
Speed cutting: 500 mm / min
Air assist: 60 Litres per min (Hailea air compressor)
| Type of material | Repeats | |||||
| Name | Thickness | Density | 15 watt (15000 mW) “Duos” laser system | 10 watt (10000 mW) | ||
| Mm | inch | g / cm^3 | Min | Max | Min | Max | |
| Cedar plywood | 3.5 | 1/7’’ | 0.39 | 2 | 2 | 3 | 4 |
| Moroccan plywood (3 ply) | 2.5 | 1/10’’ | 0.48 | 2 | 2 | 3 | 4 |
| Birch plywood (3 ply) | 3.5 | 1/7’’ | 0.7 | 4 | 5 | 6 | 8 |
| Marine Plywood (3-ply) | 1 |1/25’’ | 0.85 | 4 | 5 | – | – |
| MDF | 3 | 1/8’’ | 0.87 | 9 | 10 | – |
– |
Engraving on acrylic and glass with 15 watt (15000 mw) 445 nm blue diode "DUOS" laser head (Endurance lasers production)
Leather and ceramics engraving - a live video guide.
An advanced temperature control system for TEC (Peltier). Keeps the laser working in a perfect temperature range
Technical information about Endurance 15 watt (15000 mW) laser head (data specs)
| Version 1.1 (Dual) | |
| Laser Type | Diode laser |
| Diode type | NUBM44 / NUBM47 |
| Laser Optical Peak Power Output (Impulse) | 15000mW ± 10% |
| Laser Optical Average Power Output (CW) | 13000mW ± 15% |
| Focal Range | 40 mm |
| Laser Wavelength | 445 nm |
| Laser Wavelength tolerance | +- 2 nm |
| Lens Type | 2 x G7 lens |
| Operation Time | Tested 48-72 hours continuous |
| Heatup time | 1 s |
| Voltage | 9-18V DC |
| Total current consumption | 18A (12V) |
| Cooling | Effective fan (turbine) + double TEC cooling (adjustable) |
| Mount | M4 holes on the back |
| Installation Process | |
| Laser beam spot | 120-125 uM (microns) |
| Power adjustment | Endurance Mo2 PCB |

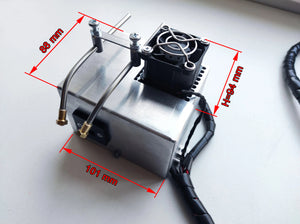

| Laser Dimensions (W x L x H) mm | 117x84x96 |
| Laser Weight | 741 g (1.6 pounds) |
| Laser Driver | External laser control box |
| Lifetime | 10 000 hours |
| Maintenance | Keep the protective glass clean. Clean with ethanol. |
| Air assist | 2x Endurance air nozzle ver 1. |
| The critical temperature for operating the laser | 45-50C |
| Idle temperature | 15-25C |
