2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module
2.5 watt red (638 nm) Mitsubishi ML562G84 laser module

2.5 watt red (638 nm) Mitsubishi ML562G84 laser module

Vendor
Endurance Lasers LLC
Regular price
$795.00
Sale price
$495.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

We present a 2.5 watt red (638 nm) laser.

Technical characteristics of the red 638 nm laser (Endurance Lasers LLC production)

Laser type: Diode laser
Laser diode type: Mitsubishi ML562G84
Wavelength: 638 nm
Optical power: 2.5W
Lens: 3 Elements
Optimum focal length: 40-60 mm
Compatible lenses: 3 Elements, G2, G7, G8
Working temperature: 15-35 C
The critical temperature for laser operation: 45-50 C
Laser diode cooling type: Air
Consumed voltage: 12V
Current consumption: 1.5A
Laser Diode Control Board: Endurance MO1 PC
Operating modes: "Full Power", "PWM", "Focus mode"
Incoming control signal: PWM 3.3-24 V frequency 1-1000 Hz
Cable length from box to laser head: 0.7 m

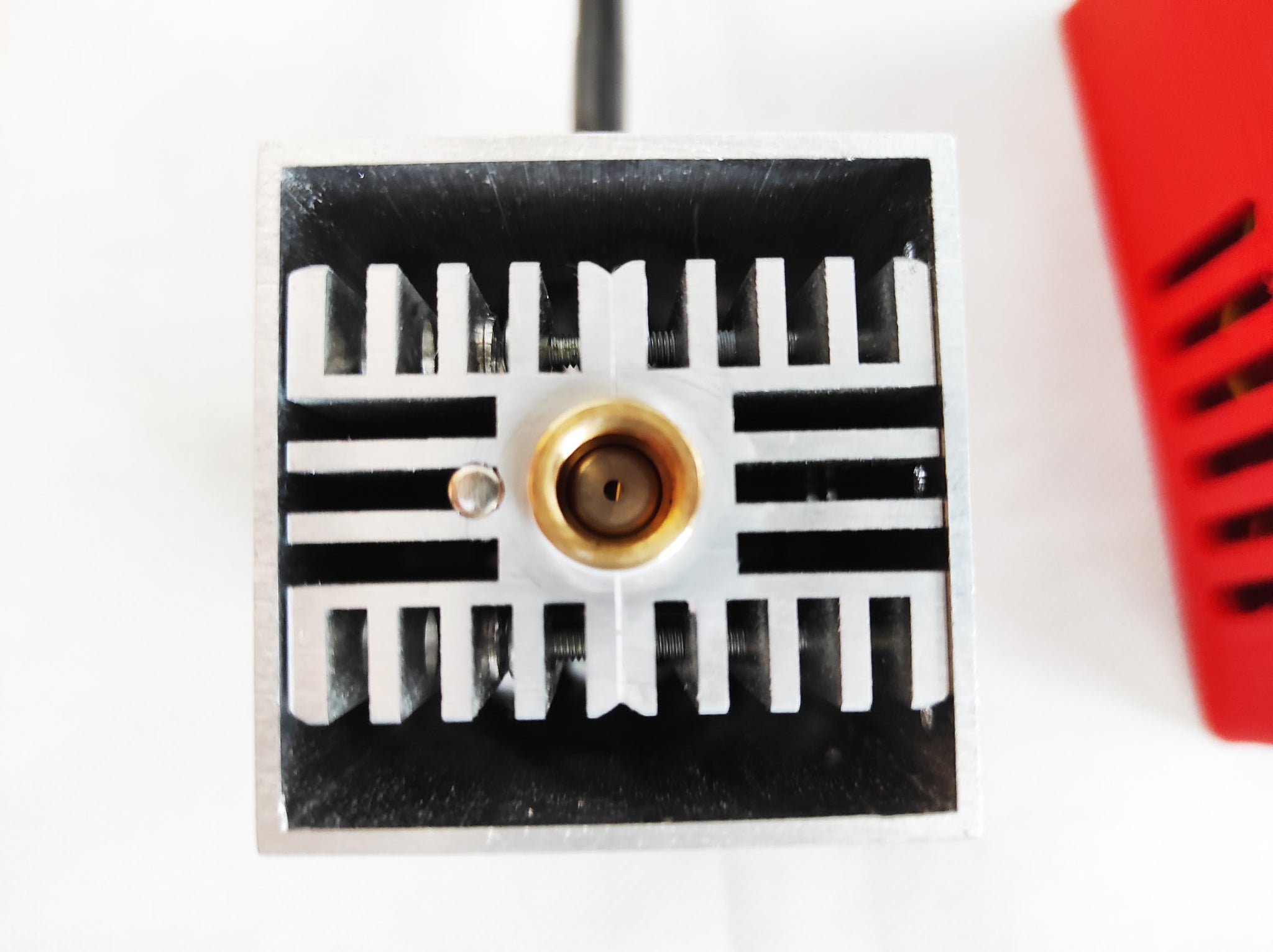

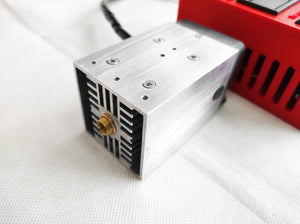

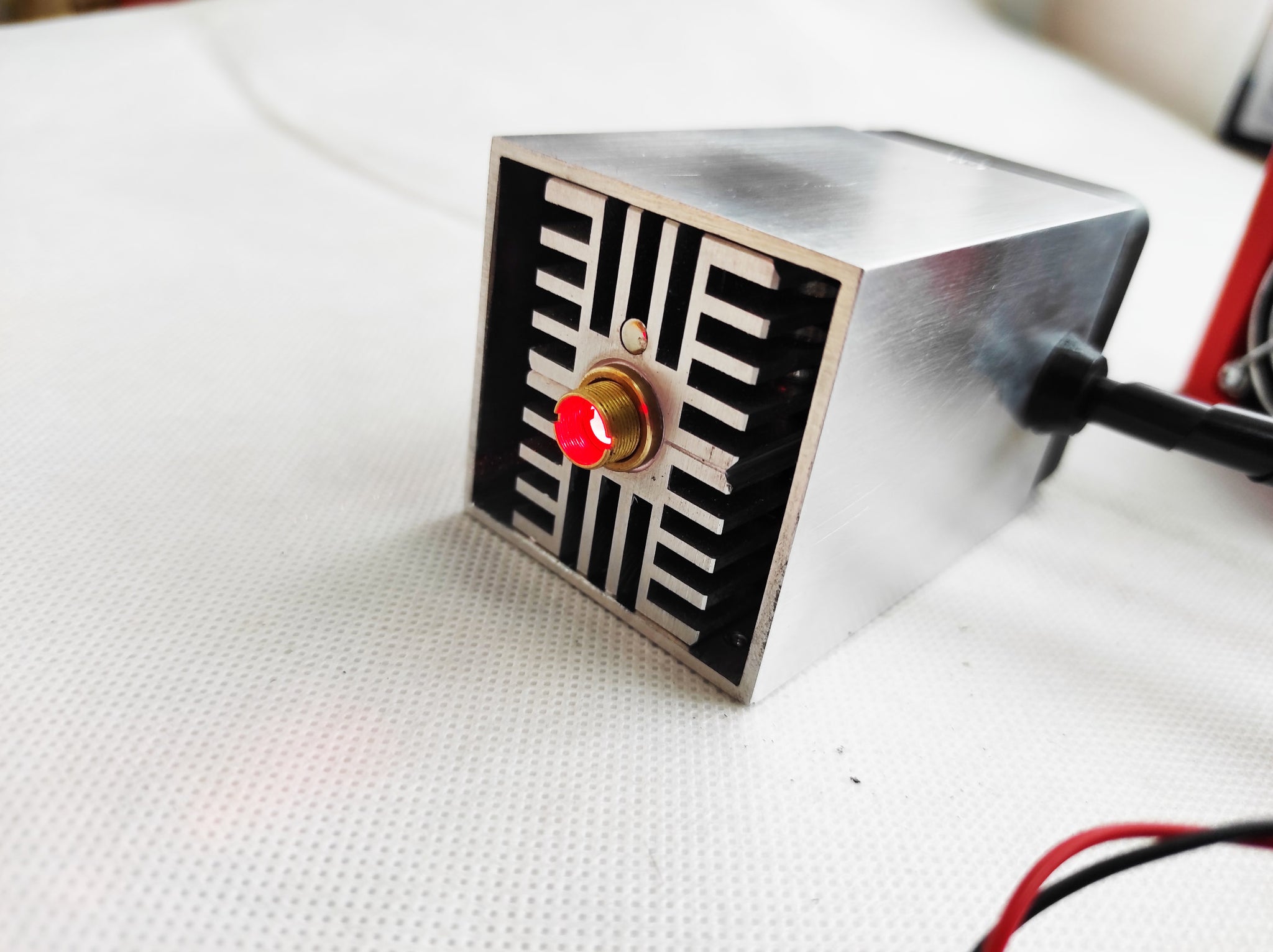

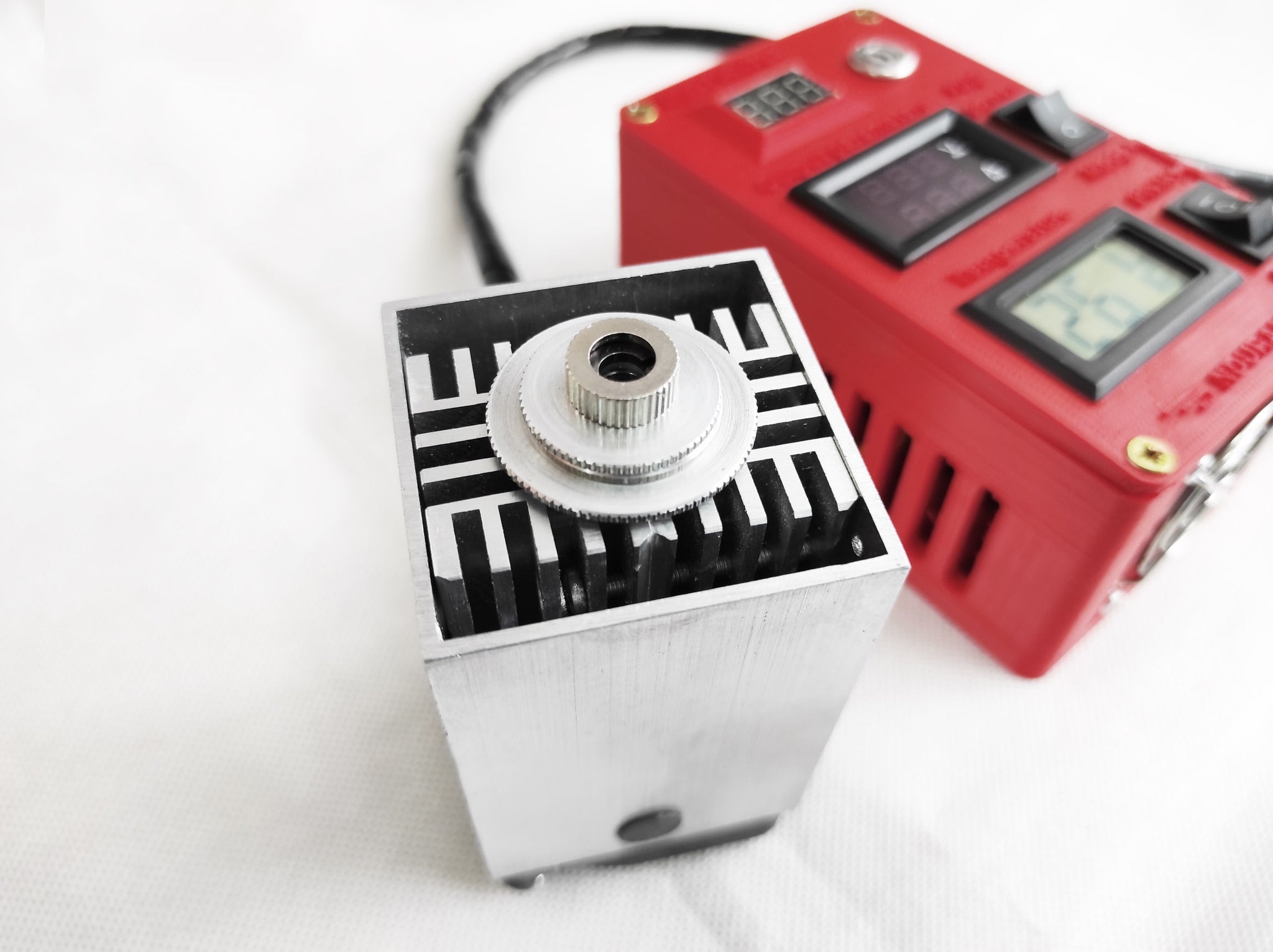

Laser head (emitter)

Material: Aluminum
Overall size: 50x50x90mm
Weight: 250 g

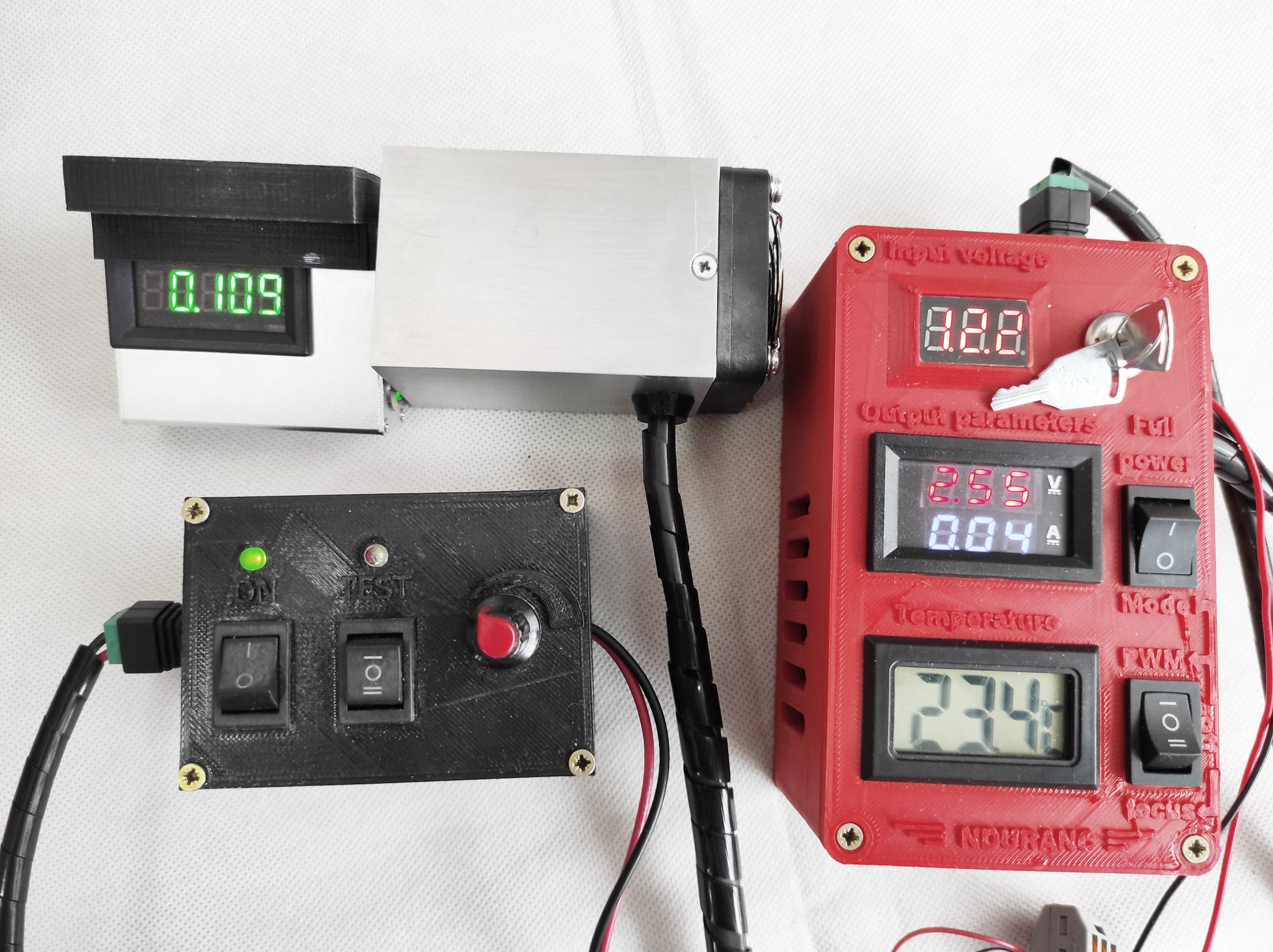

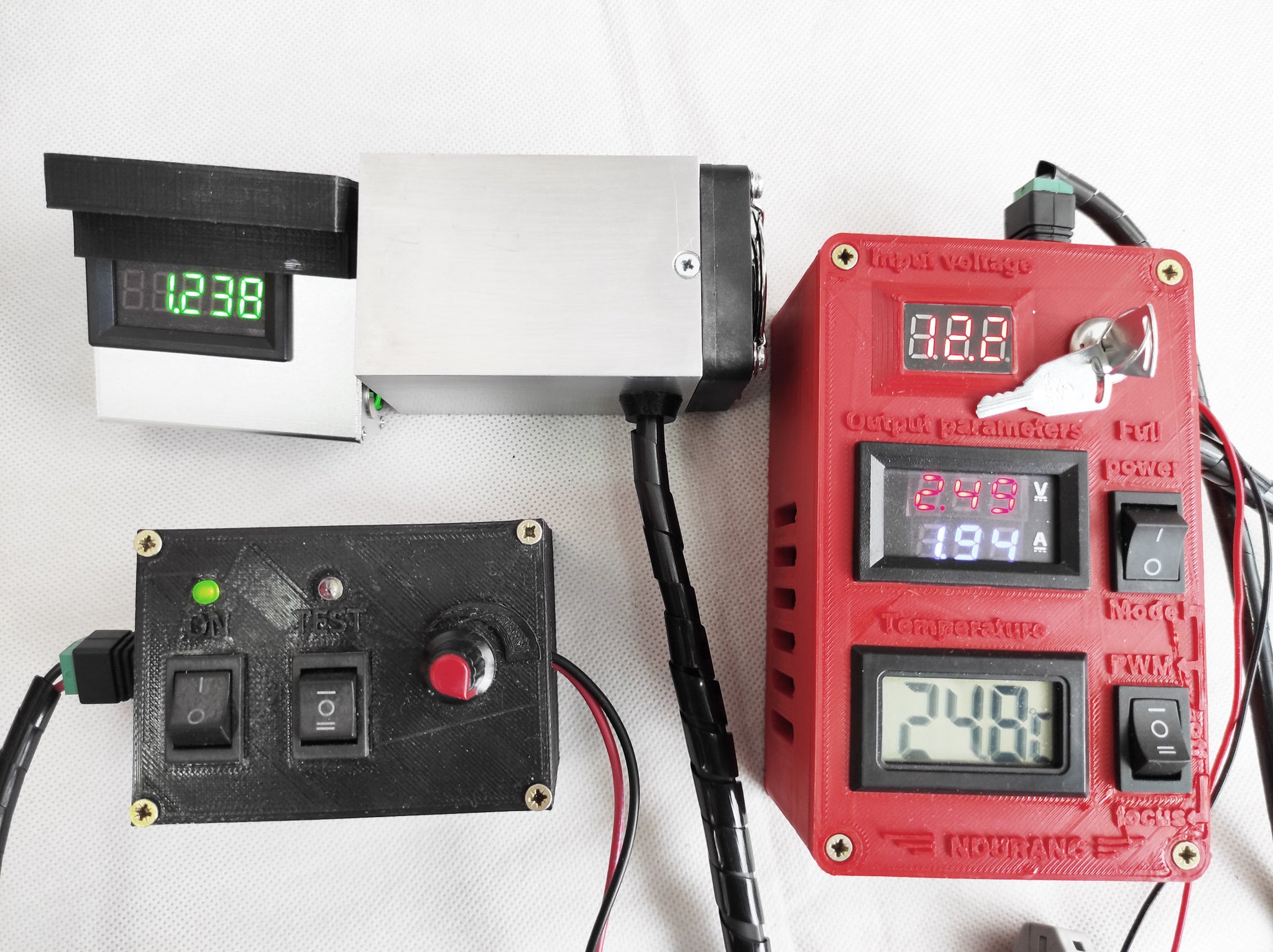

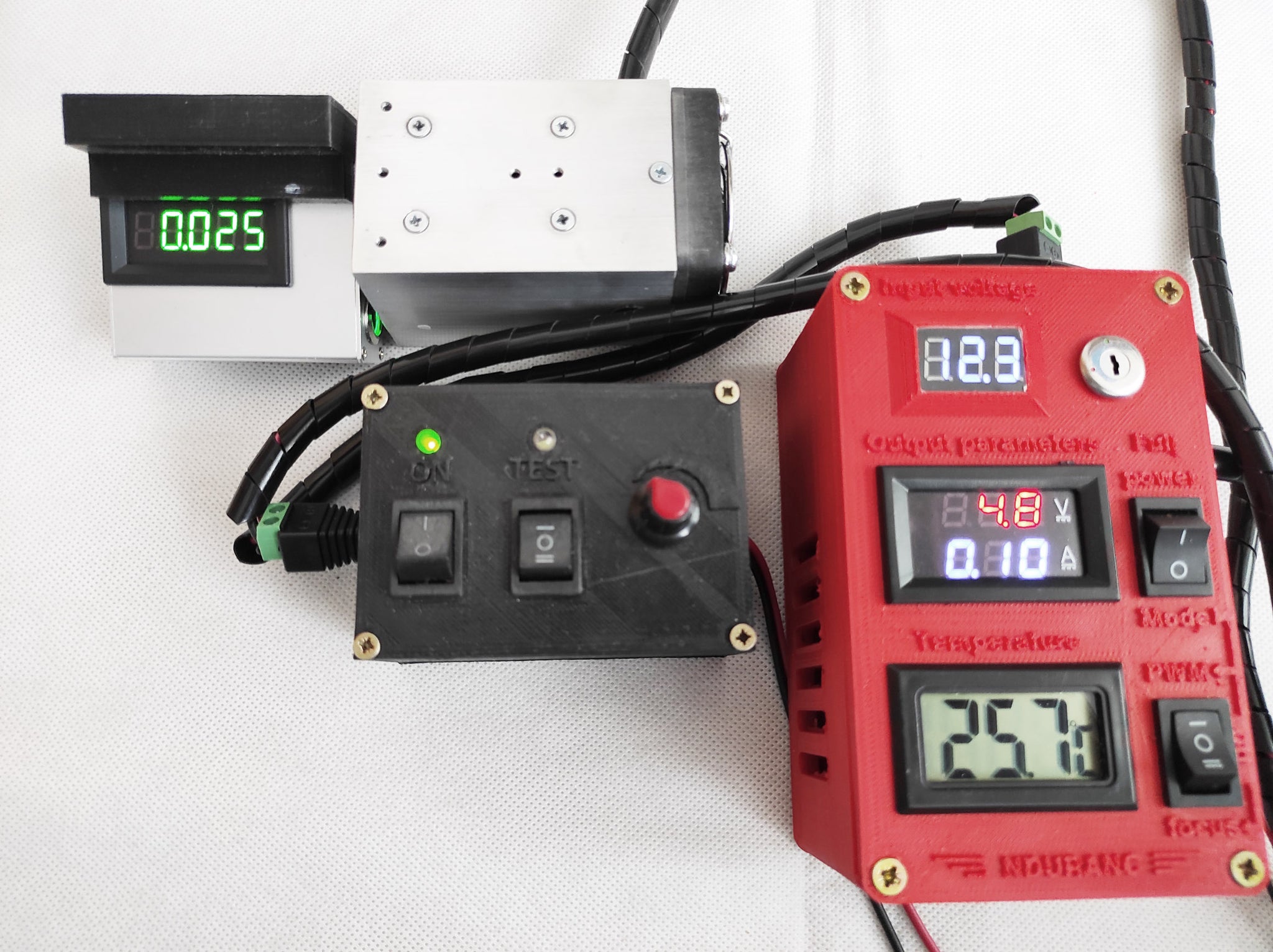

Laser control box

Material: PLA plastic
Overall size: 132x80x63mm
Weight: 350 g

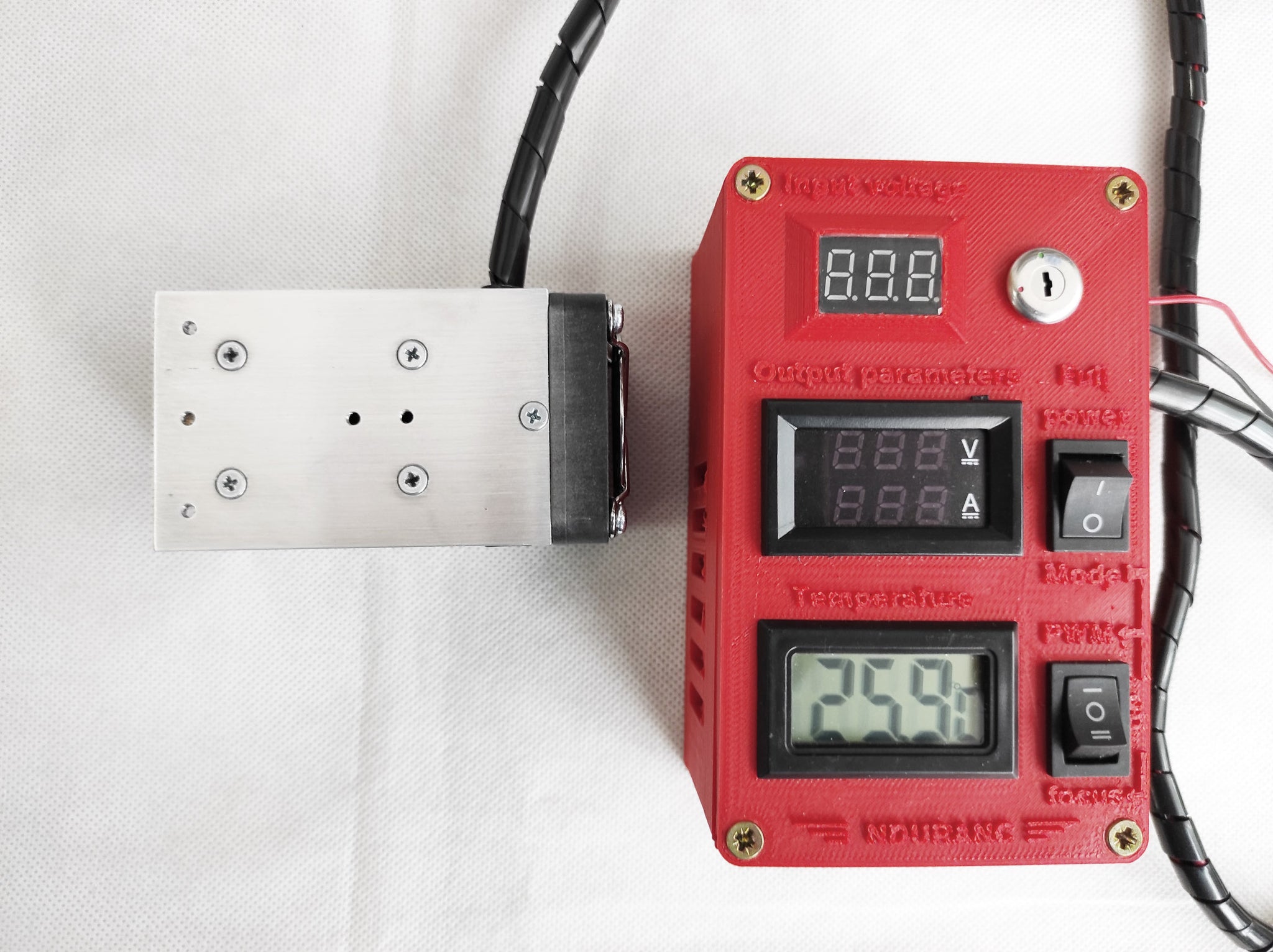

Composition of the 2.5W red 638nm laser kit:

1. Laser head
2. Control box "Endurance Laser Big Box ver1.1"
3. Power supply 12V 4A
4. Clamping rings for the lens - 3 pcs
5. Set of fasteners
6. Safety glasses
7. Focusing plate
8. Protective gloves
9. Stickers



LD Mitsubishi ML562G84 2.5 watt 638 nm features
